Outline

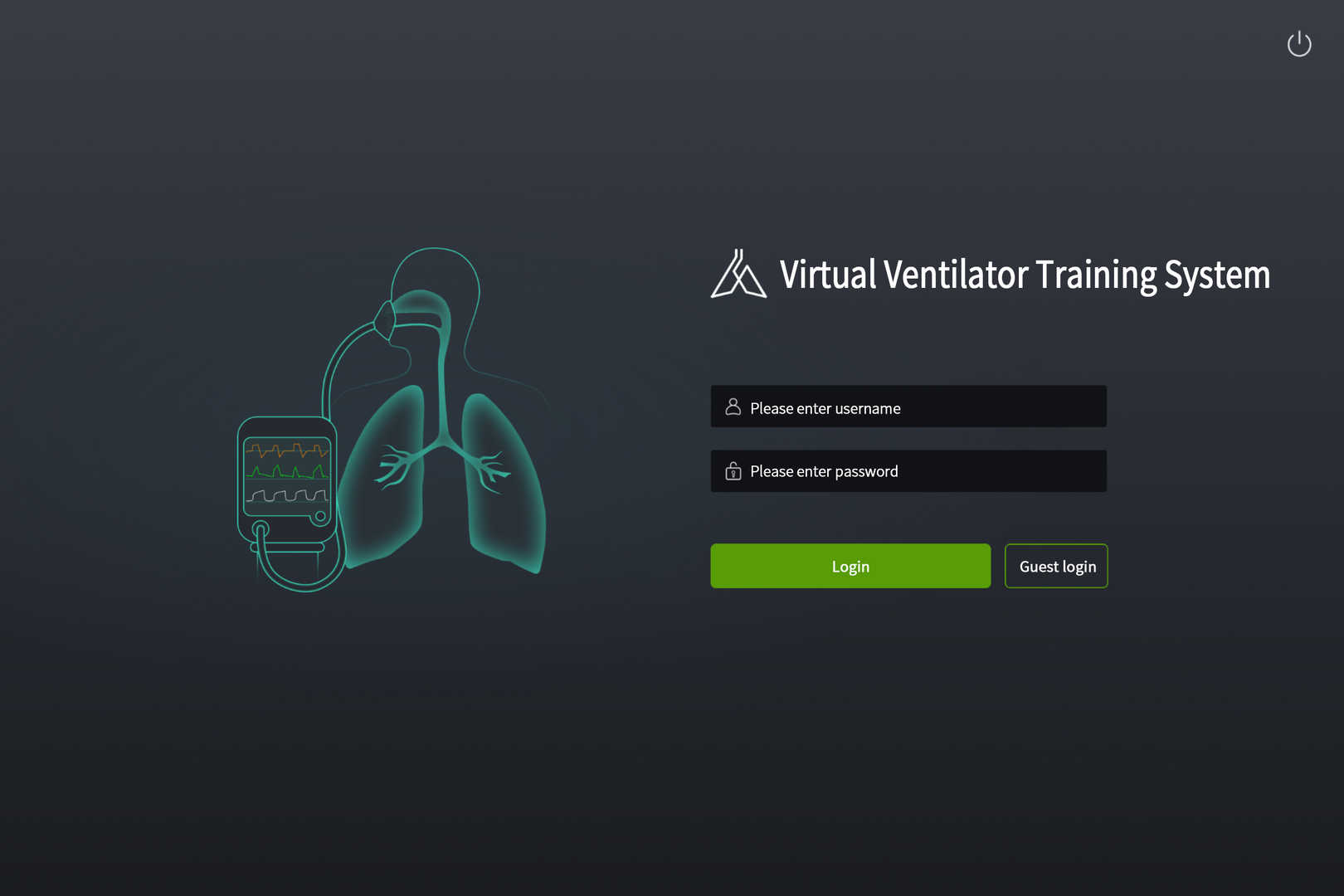

The system is designed based on the real ventilator operation interface and functions, compatible with non-invasive ventilation mode and invasive ventilation mode, which different ventilation mode shows different parameter settings and waveform changes. It also offers the vital signs monitor, convenient for displaying the patient's condition at any time, creating a safer and more reliable training scenario for users.

Skills Gained

· Non-invasive ventilation

· Invasive ventilation

· Intubation

· Knowing of cases including COPD, ARDS, CVD, nerve diseases etc.

· Intervention treatment

Features

1.     About the product

1)    65-inch multi-point smart touch screen & 4K resolution (3840×2160), supporting high-definition display

2)    The height of the screen can be automatically raised and lowered with one button with adjustable height range of 674mm-1000mm. The screen also can be rotated within 0-90° angle

3)    The system is preset with typical cases from multiple departments, including respiratory system (COPD, ARDS), cardiovascular system, nervous system, etc.

4)    The system is modeled according to the real human pathophysiological data, so clinical sign changes can be showed by adjusting the parameter of virtual ventilator

5)    Each case can view the patient's condition and initial physiological parameters

6)    During the operation of the case, the treatment measures in the intervention list can be used to cure the virtual patient

7)    The system automatically records user operations and case parameter alarms ranges and generates logs, which can be exported

8)    Three different system skins can be chosen

2.     It includes two modules: virtual ventilator and vital signs monitor

1)    Virtual ventilator:

A)      The interface appearance and operating habits are very close to the real ventilator, including commonly used functions such as mode selection, parameter adjustment and alarm setting

B)      The sound effect of ventilation can be simulated, offering a more real simulation scenario

C)      The ventilation mode can be selected. For non-invasive mask, you can choose S/T, CPAP, etc. For intubation, you can choose more than 10 kinds of ventilation, such as P-A/C, V-A/C, PSV, V-SIMV, etc. The ventilation setting parameter differs in each ventilation mode, including PIP, I:E, PEEP, etc., which can be adjusted at any time

D)      It can monitor and display common mechanical ventilation parameters: three waveforms display of P-T, F-T, V-T and two ring chart diagrams of P-V, F-V, which will change in real time as the ventilation mode and parameter settings

E)       It can monitor the trend graph of minute ventilation, peak airway pressure, tidal volume, etc.

            F)       The alarm range can be set. There will be flashes and beeping sound when the value exceeds the range

2)    Vital signs monitor:

A)      It can monitor ECG, respiratory wave and other waveforms as well as parameters such as HR and SpO2. NIBP monitoring can be automatically started at any time or regularly, and the monitoring data can be dynamically changed with the disease

B)      The alarm range can be set. There will be flashes and beeping sound when the value exceeds the range

C)      It can display auxiliary inspection results like simulation examination report and laboratory test report
